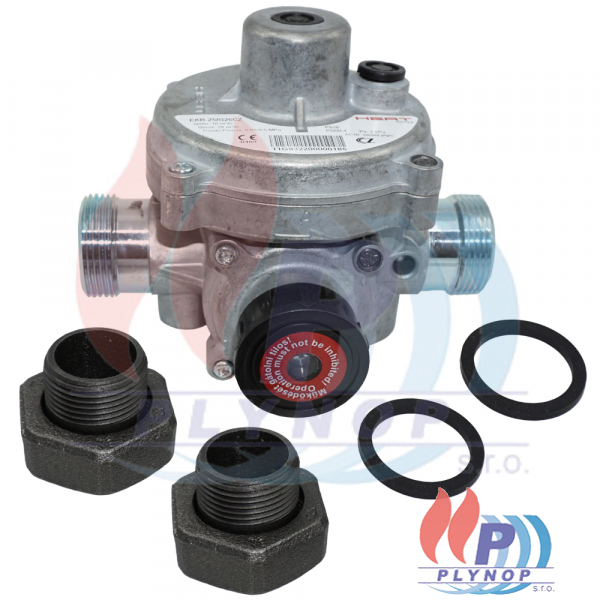

Gas pressure regulator EKB-25/G26-I GAZGEP - EKB-25/G26-I

Gas pressure regulator EKB-25/G26-I GAZGEP - EKB-25/G26-I

TECHNICAL PARAMETERS:

• Length: 166mm
• Connection thread: G 5/4A

PERFORMANCE PARAMETERS:

• Qmax: 25 m3/hour
• Q min: 12 m3/hour
• Max. working pressure: 0.5 MPa
• Classification: B / II
• Regulatory class: AC10
• Closing pressure band class: SZ 20
• Ambient temperature: -20 °C to +60 °C

Closing pressure class:

• upper band BH 10
• lower band: BH 25

The regulator is characterized by:

• high control comfort
• superior safety features
• high connection variability
• small dimensions
• low weight

Two-stage gas pressure regulators EKB-10 and EKB-25, which were developed based on many years of experience using the most modern technological and manufacturing processes. Their design achieves high control accuracy and maximum security. The regulating part reduces the input pressure of 0.01 MPa to 0.5 MPa in two stages to an output pressure of 2 kPa and a flow rate that is constant and independent of input pressure fluctuations throughout its entire range.
